Description

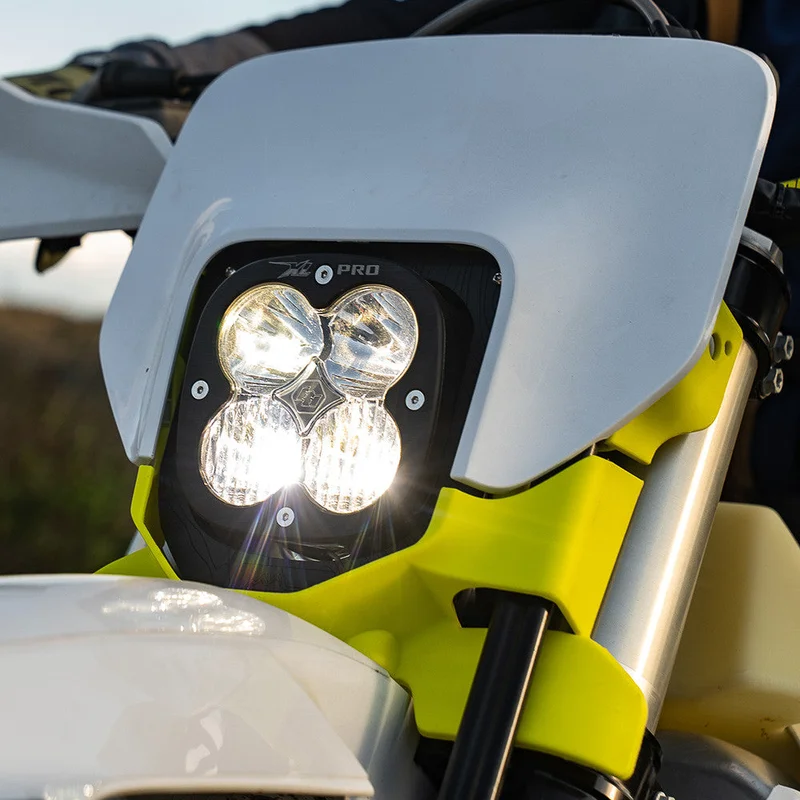

Specially designed for those riders who are looking for more than just your average headlight. The XL Pro, LED KTM 2014-On Kit is in a league of its own, producing 4,900 lumens and 40 watts giving you the perfect mix of power and performance, and offers a 50% dimming feature. The XL Pro, LED KTM 2014-On Kit has been meticulously designed by Baja Designs engineers to give riders an extremely lightweight (2.45 lbs) race light while presenting a unique style and appearance that you will only find from Baja Designs. The XL Pro, LED KTM 2014-On Kit is plug and play making for an easy install. An industry first 30 Day Satisfaction Guarantee & Limited Lifetime Warranty is included for the ultimate in purchase protection.

Driving/Combo:  Maximum trail coverage in a single light.  The Driving/Combo pattern is equipped with both Wide Driving (44°) and spot (6°) optics to provide you with a smooth blend of light for both near field applications and distance.

Note:

• Some electric-start bikes require the stator to be modified or rewound as well as the addition of a new rectifier/regulator to run LED lights.
• Electric start bikes that require a stator modification or rewind will have to the purchase a switch & wiring harness kit.
• Hi-Beam Indicator will always be on when used with our Hi/Low KTM relay harness.

SPECIFICATIONS

Lumens: 4,900 Utilizing 4 Cree XP-L LEDs
Wattage/Amps:40W / 2.90A
Dimensions: 4.43″ x 3.65″ x 4.43″
Weight: 1.85 lbs
LED Life Expectancy: 49,930 Hours
Front Lens:Hardcoated Polycarbonate
Housing:Hard Anodized Aluminum
Bezel: Billet Machined Aluminum
Hardware & Bracket Material: Stainless Steel
Exceeds MIL-STD810G (Mil-Spec Testing)
Built-In Overvoltage Protection
IP69K (Waterproof up to 9ft & Pressure Washable)
IK10 Compliant (Mechanical Impact Testing)

FITMENT

• KTM 350 EXC-F 2014-2016
• KTM 500 EXC 2014-2016
