Description
985-02-103

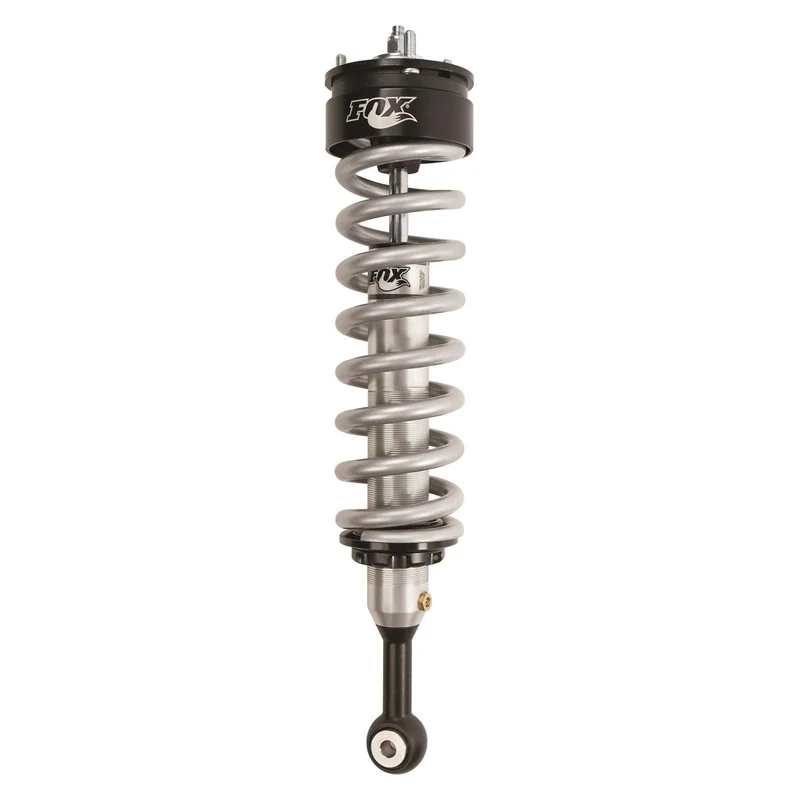

Our bolt-on, Performance Series Coil-over IFP shock is loaded with advanced technology and a long list of features that set it apart. The precision, metal impact extruded aluminum body increases cooling capacity and is rust resistant. The vehicle-specific upper mount includes a composite bushing that isolates noise and vibration.
Locking, spring preload rings that allow easy ride height and preload adjustment retain a top quality racing coil, selected to deliver the optimal spring rate. Performance Series Coil-Over IFP shocks bolt on with no modifications and are designed to level your truck front-to-rear. Applications are available for stock and lifted trucks that re-use the stock shock.
Inside is an internal reservoir with Internal Floating Piston (IFP) mono-tube design separates the shock oil from the high-pressure, nitrogen-charged gas chamber. The IFP eliminates oil aeration allowing maximum performance from the factory-tuned, precision valving. The easy-to-install, Performance Series 2.0 Coil-over IFP provides a comfortable on-road ride and predictable off-road handling in even the toughest conditions.
985-02-103 ALSO FITS
| MAKE | MODEL | YEAR | POSITION | WD | LIFT | |
|---|---|---|---|---|---|---|
| Chevrolet | Colorado | 2022 | Front | ALL | 0-2″ | |
| GMC | Canyon | 2022 | Front | ALL | 0-2″ | |
| Chevrolet | Colorado | 2021 | Front | ALL | 0-2″ | |
| GMC | Canyon | 2021 | Front | ALL | 0-2″ | |
| Chevrolet | Colorado | 2020 | Front | ALL | 0-2″ | |
| GMC | Canyon | 2020 | Front | ALL | 0-2″ | |
| Chevrolet | Colorado | 2019 | Front | ALL | 0-2″ | |
| GMC | Canyon | 2019 | Front | ALL | 0-2″ | |
| Chevrolet | Colorado | 2018 | Front | ALL | 0-2″ | |
| GMC | Canyon | 2018 | Front | ALL | 0-2″ | |
| Chevrolet | Colorado | 2017 | Front | ALL | 0-2″ | |
| GMC | Canyon | 2017 | Front | ALL | 0-2″ | |
| Chevrolet | Colorado | 2016 | Front | ALL | 0-2″ | |
| GMC | Canyon | 2016 | Front | ALL | 0-2″ | |
| Chevrolet | Colorado | 2015 | Front | ALL | 0-2″ | |
| GMC | Canyon | 2015 | Front | ALL | 0-2″ |
| Body | 2.0” Impact extruded and CNC machined 6061-T6 clear anodized aluminum one-piece body resists rust over time |
|---|---|
| Body Plating | Clear-anodized for a durable finish |
| Reservoir | Internal IFP mono-tube reservoir design |
| Components | Black-anodized, CNC-machined 6061-T6 billet aluminum |
| Shaft | 5/8″ hard chrome plated heat-treated alloy steel |
| Piston | Race-developed high-flow piston design |
| Valving | Application specific valving to maximize performance |
| Seals | Redundant sealing pack system main seal, wiper seal, scraper seal |
| Bearing | Large diameter, heavy-duty spherical |
| Adjustments | Ride height preload ring |
| Extended | 19.590 |
| Compressed | 15.000 |
| Travel | 4.590 |
| Top Mount | OEM |
| Bottom Mount | Eyelet |
